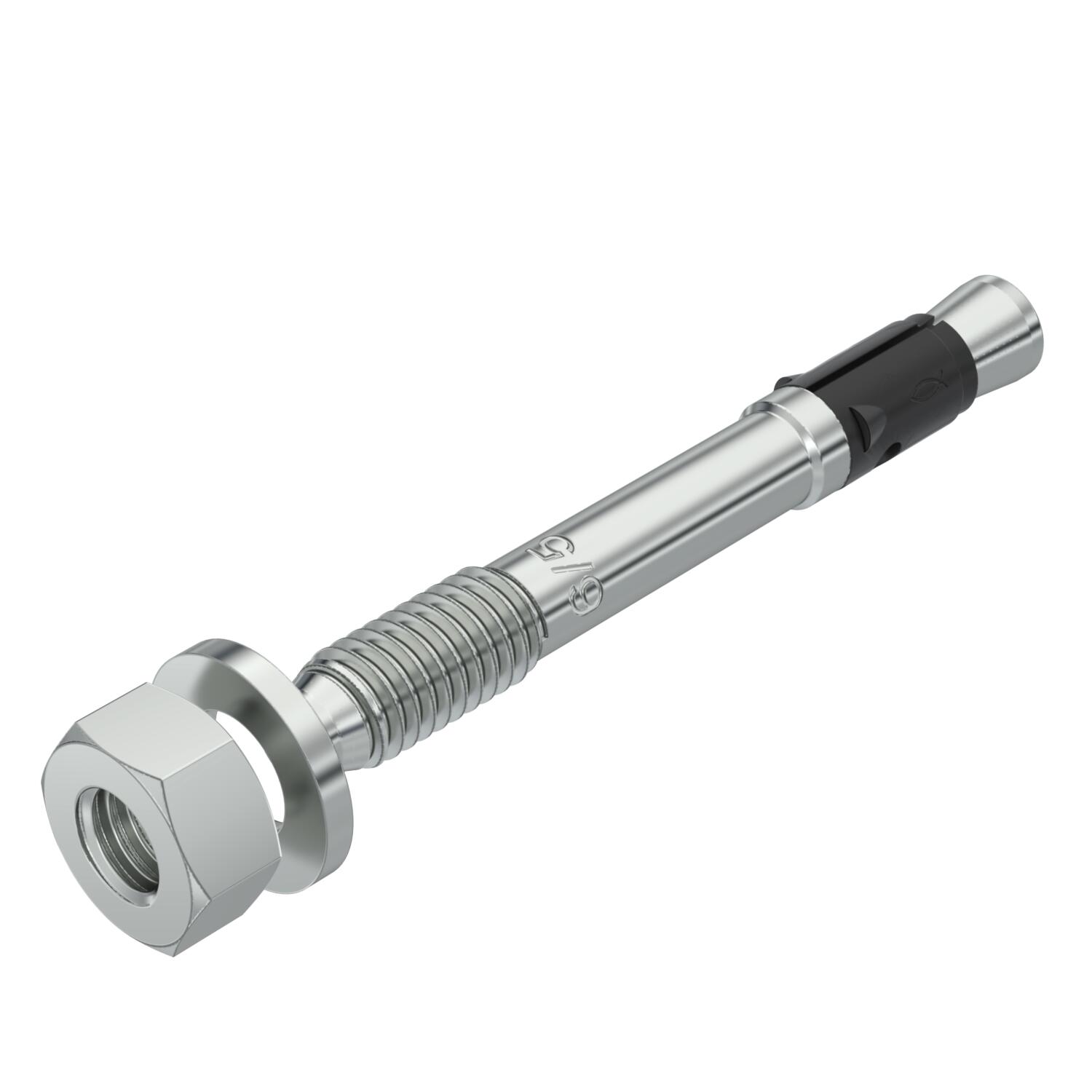

Nail tie with thread G

Nr kat. 3499020 | EAN 4012197507367

M6
Opis produktu
Opis produktu
Nail tie with thread for the anchoring of, for example, fire protective products, mounting rails, metal clips, substructures made of wood and metal, etc. on walls and ceilings from cracked concrete in indoor and outdoor areas. To knock in with a hammer. When loads occur the nail tie spreads out automatically and anchors itself in the drill hole. Rustproof and highly corrosion-resistant. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-06/0175.
  • Oświadczenie o zgodności z dyrektywami WE
Dane techniczne

Dane techniczne

Dostępne aprobaty tak
Długość 55 mm
Gwint M6
gwint metryczny 6
Głębokość wierconego otworu 45 mm
Kolor cyjan
Materiał Stal
Powierzchnia cynkowane galwanicznie
Przyrząd mocujący inne
Samowiercąca brak
Siła zaciskania 10 mm
Średnica otworu min. 6 mm
Wykonanie Udar
Wymiar 6x50
Wymiar L 55 mm
Wszystkie typy

Wszystkie typy

Typ Gwint Nr kat. Ilość Najmniejsza sprzedawana ilość
FNAII 6x30M6/5 M6 3499020
100 Sztuka
FNAII 6x30M6/5A4 M6 3499024
50 Sztuka
