- Opis produktu
-

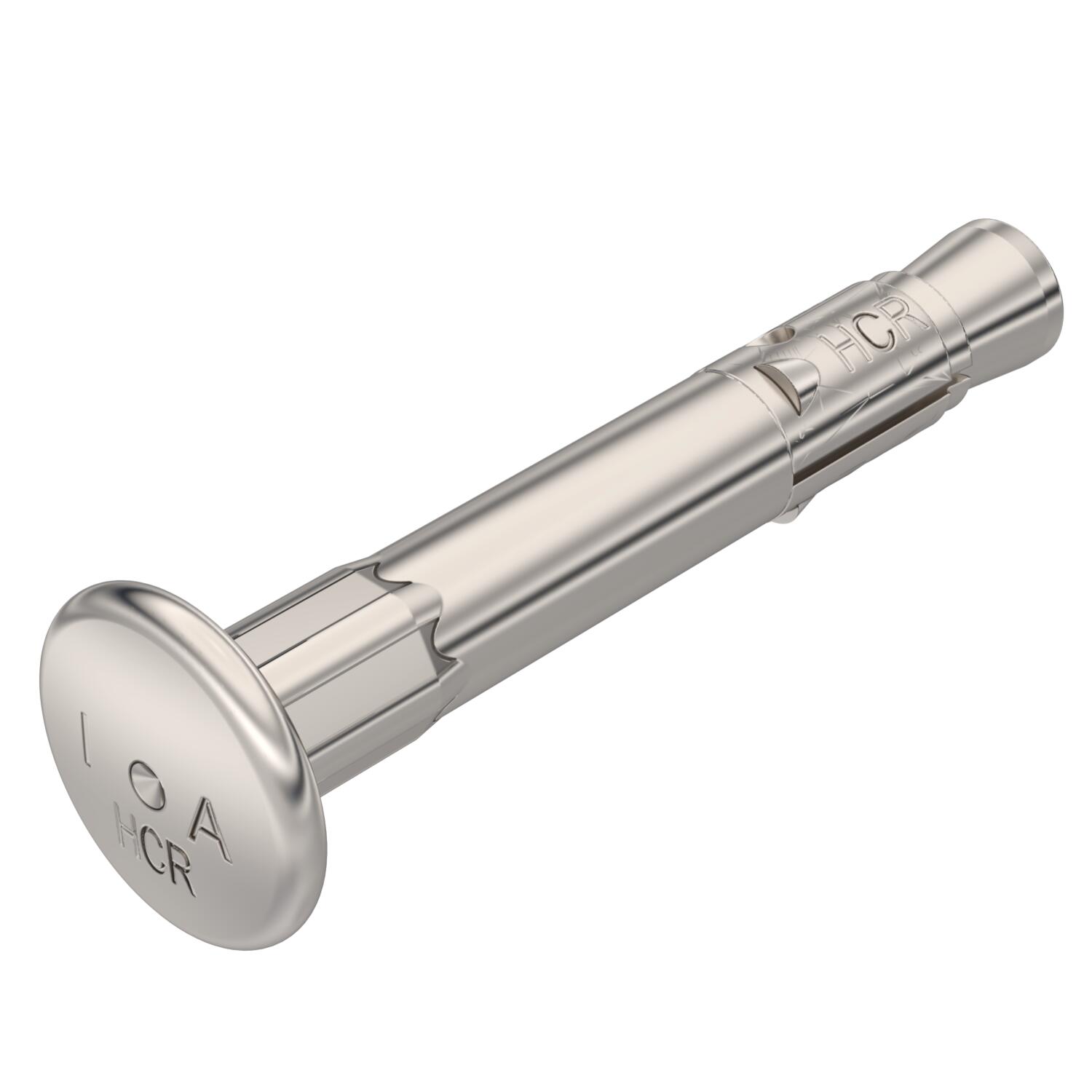

Opis produktuNail tie with nail head for the anchoring of, for example, fire protection products, mounting rails, metal clips, substructures made of wood and metal, etc. on walls and ceilings from cracked concrete in indoor and outdoor areas. To knock in with a hammer or rotary drill When loads occur the nail tie spreads out automatically and anchors itself in the drill hole. Rustproof and highly corrosion-resistant. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-06/0175.
-
- Dane techniczne
-
Dane techniczne

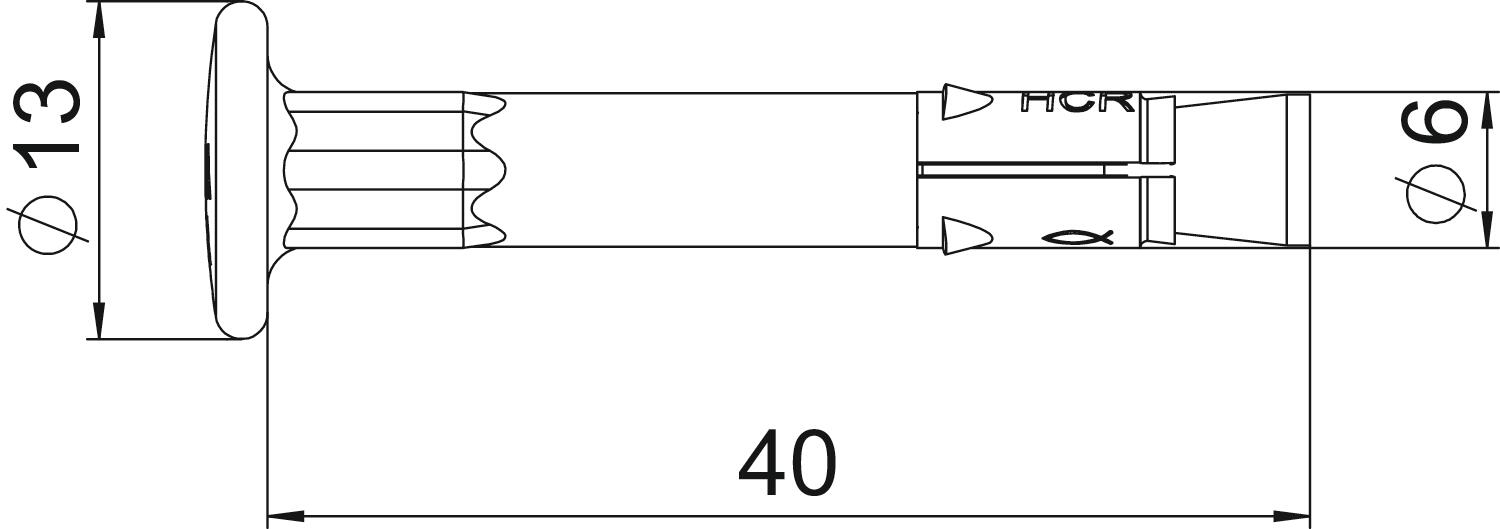

Dostępne aprobaty tak Długość 42,5 mm Głębokość wierconego otworu 45 mm Kolor stal szlachetna Materiał stal nierdzewna Przyrząd mocujący inne Samowiercąca brak Siła zaciskania 5 mm Średnica otworu min. 6 mm Wykonanie Udar Wymiar 6x42,5 Wymiar L 42,5 mm - Wszystkie typy
- Do pobrania
-
Karta danych technicznych FNAII 6x30/5A5 / 3499016 , 0.15MB , pdfDeklaracja zgodności UE FNAII 6x30/5A5 / 3499016 , 0.11MB , pdfDo tego produktu nie są dostępne żadne zestawienia produktowe
