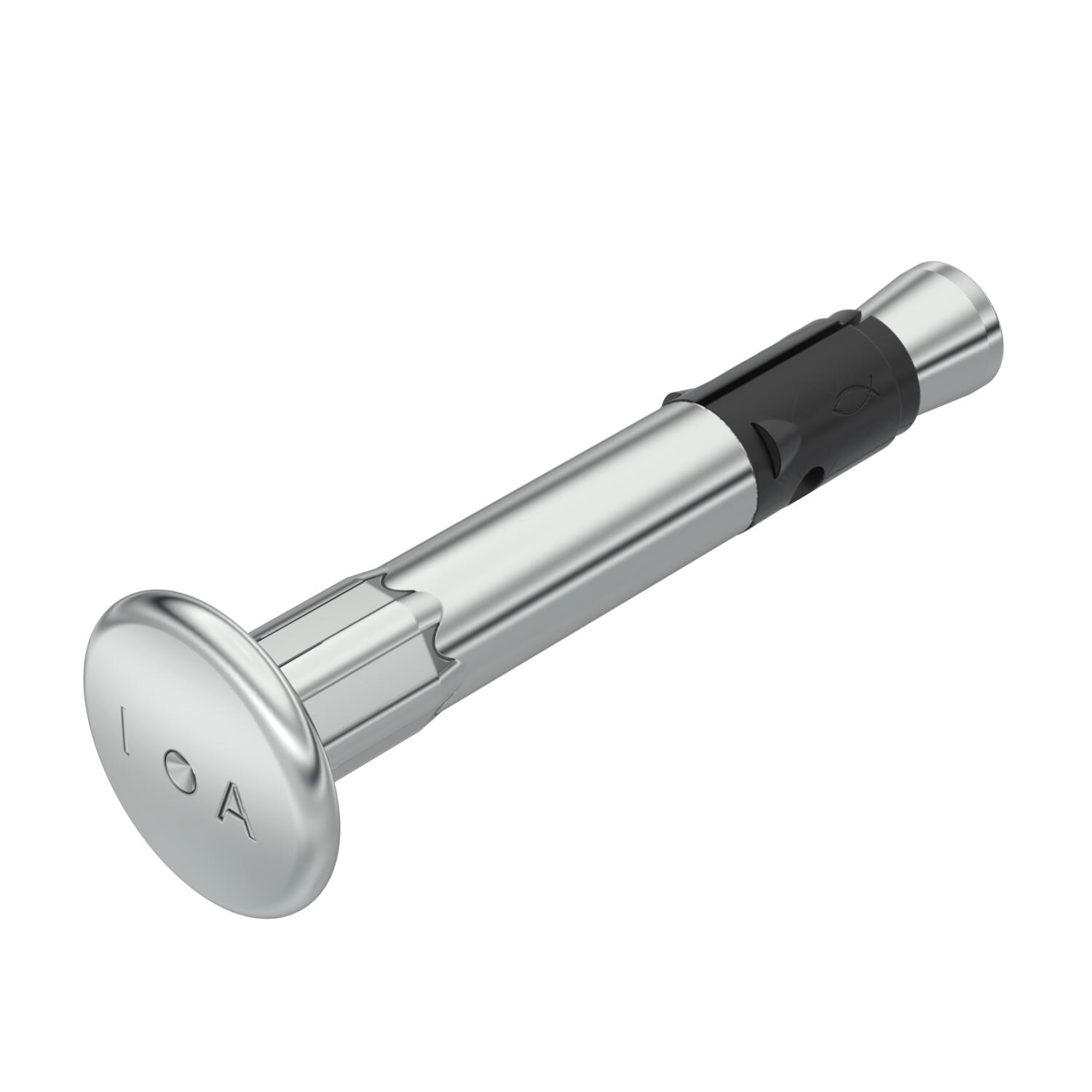

Nail tie with nail head G

Nr kat. 3499010 | EAN 4012197507336

Opis produktu
Opis produktu
Nail tie with nail head for the anchoring of, for example, fire protection products, mounting rails, metal clips, substructures made of wood and metal, etc. on walls and ceilings from cracked concrete in indoor and outdoor areas. To knock in with a hammer or rotary drill When loads occur the nail tie spreads out automatically and anchors itself in the drill hole. Rustproof and highly corrosion-resistant. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-06/0175.
  • Oświadczenie o zgodności z dyrektywami WE
Dane techniczne

Dane techniczne

Dostępne aprobaty tak
Długość 42,5 mm
Głębokość wierconego otworu 45 mm
Kolor cyjan
Materiał Stal
Powierzchnia cynkowane galwanicznie
Przyrząd mocujący inne
Samowiercąca brak
Siła zaciskania 5 mm
Średnica otworu min. 6 mm
Wykonanie Udar
Wymiar 6x42,5
Wymiar L 42,5 mm
Wszystkie typy

Wszystkie typy

Typ Gwint Nr kat. Ilość Najmniejsza sprzedawana ilość
FNAII 6x30/5 3499010
100 Sztuka
FNAII 6x30/5A4 3499014
50 Sztuka
FNAII 6x30/5A5 3499016
50 Sztuka
Do pobrania

Karta danych technicznych FNAII 6x30/5 / 3499010 , 0.15MB , pdf
Do pobrania

Do pobrania

Do tego produktu nie są dostępne żadne zestawienia produktowe
